Light steel keel systems, also known as light gauge steel framing systems, offer low weight, efficient installation, good dimensional stability, and convenient space for building services. They are widely used as supporting frameworks for gypsum board partitions, suspended ceilings, and interior finishing systems.
The quality of light steel keel installation depends not only on the installation work itself but also on the preparations completed beforehand. An unapproved substrate, incorrectly selected framing components, or poorly coordinated mechanical and electrical services may lead to uneven walls, incorrect ceiling levels, cracked board joints, loose connections, or costly rework.
Before installation begins, the drawings, site conditions, materials, measurements, tools, and safety requirements should therefore be systematically checked.
The first step is to determine the intended application of the light steel keel system.

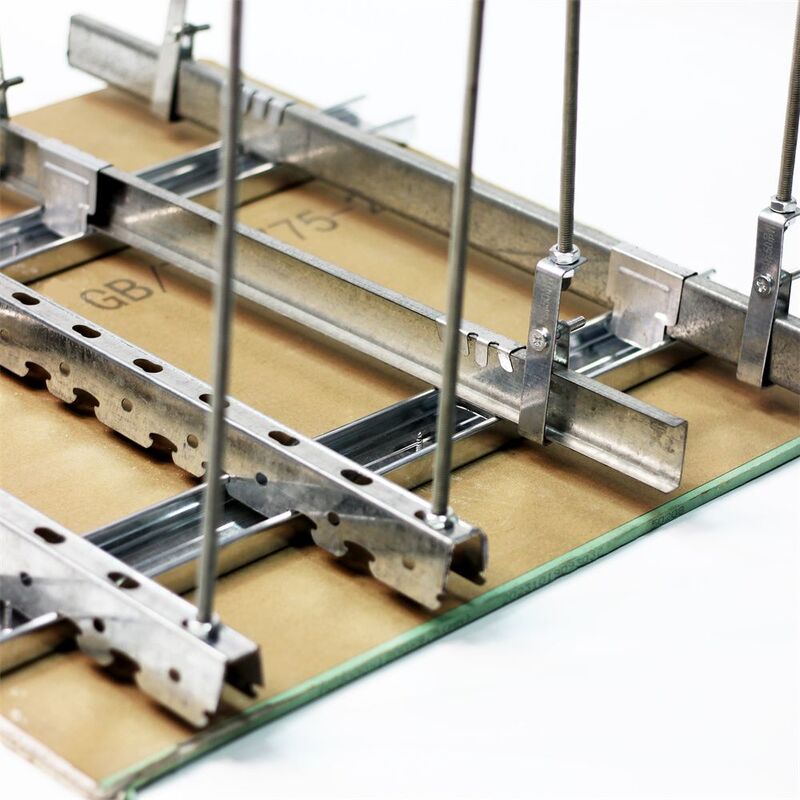

A partition system generally consists of floor and head tracks, vertical metal studs, horizontal bracing or noggings, and facing boards. A suspended ceiling system may include hangers, main channels, secondary channels, perimeter channels, and connecting accessories.
Different systems require different profiles, metal thicknesses, framing arrangements, and fixing methods. Partition studs and tracks should not be substituted for ceiling channels unless the selected system specifically permits it.
Before installation, the construction team should review the architectural, interior, mechanical, electrical, and detailed installation drawings. The following information should be carefully confirmed:
Location, length, and finished height of each partition
Ceiling elevation and changes in ceiling design
Positions of doors, windows, access panels, and equipment openings
Locations of lighting fixtures, air outlets, sprinklers, and service lines
Type, number of layers, and installation direction of facing boards
Fire-resistance, acoustic, moisture-resistance, and load requirements
Framing specifications, spacing, and connection methods
The spacing of studs, ceiling channels, hangers, and fixing points should follow the approved drawings, the system manufacturer’s technical instructions, and applicable local building regulations. It should not be determined solely through previous construction experience.
Before light steel keel installation begins, the main structure and relevant substrate work should be complete and suitable for fixing.
Concrete slabs, walls, beams, or structural steel surfaces should provide stable fixing points. They should not have obvious looseness, hollow areas, or defects that could affect the performance of anchors and fasteners.
The work area should also be properly cleaned. Mortar residue, dust, oil, debris, and standing water may interfere with setting-out work and the installation of floor tracks.
Inspection Item | Main Points to Check | Possible Problems |
Main structure | Whether slabs, beams, and walls are complete and suitable for fixing | Loose anchors or unstable framing |
Substrate condition | Whether floors, walls, and soffits have significant deviations | Misaligned partitions or uneven ceilings |
Site environment | Whether the area is wet, flooded, or affected by overlapping work | Moisture damage or interrupted installation |
Reserved openings | Whether doors, access panels, and equipment openings are confirmed | Later cutting, removal, or rework |
Building services | Whether electrical, plumbing, fire-protection, and HVAC layouts are coordinated | Conflicts between framing and service lines |
If actual site conditions differ from the drawings, the discrepancy should be resolved before framing installation begins.

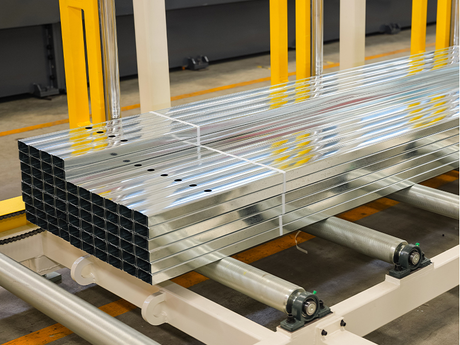

When light steel keel materials arrive on site, their profile type, dimensions, metal thickness, coating condition, and quantity should be checked against the purchase and design requirements.
Partition studs, floor and head tracks, ceiling main channels, secondary channels, and perimeter channels should be stored separately to prevent incorrect use.
The surfaces should be relatively straight and free from serious twisting, flattening, corrosion, or damage that could affect installation. Cut edges, factory openings, and formed sections should also be suitable for the intended connections.
A complete light steel framing system includes more than studs, tracks, and channels. It may also require hanger rods, clips, connectors, anchors, self-drilling screws, sealing materials, and facing boards.
Fasteners and connecting accessories must be compatible with both the framing system and the supporting substrate. Concrete, masonry, and structural steel substrates may require different fixing methods.
The selection of anchors and fasteners should consider the substrate condition, design load, operating environment, and technical requirements of the complete system.
Metal framing components should be stored in a dry, ventilated, and level area. They should not be placed directly in standing water or exposed outdoors for extended periods.
Suitable supports should be placed beneath the materials to prevent bending or distortion caused by improper stacking.
Gypsum boards, mineral fiber ceiling tiles, and other associated materials should also be stored according to their product requirements. Damp or deformed boards may reduce the quality of the finished installation.
Light steel partition walls and suspended ceilings often contain electrical cables, water pipes, ventilation ducts, fire sprinklers, and other building services.
Before framing installation, the different trades should coordinate their work and confirm the routing, elevation, and location of all pipes, cables, ducts, and equipment.
Where services must pass through metal studs, factory-made service holes should be used whenever possible. Stud flanges should not be cut or damaged without an approved method.
Large pipes, heavy equipment, and areas carrying concentrated loads may require independent support or additional reinforcement. They should not rely directly on ordinary light steel framing unless the system has been specifically designed for that load.
The positions of lighting fixtures, air outlets, access panels, cabinets, display screens, and other mounted items should also be confirmed in advance. Areas carrying additional loads may require supplementary framing, cross-bracing, backing plates, or independent supporting structures.
Accurate setting out is one of the most important preparations for light steel keel installation.
For partition walls, the wall centerline, finished-face lines, and door or window opening positions should be marked on the floor, soffit, and adjoining walls according to the building reference lines.
For suspended ceilings, a consistent elevation datum should be used to mark level-control lines around the surrounding walls. The locations of hanger rods, main channels, access panels, and equipment openings should also be identified.
After setting out, the following items should be checked:
Whether partition locations match the floor plan
Whether the completed wall thickness meets the design requirement
Whether door and window opening sizes and directions are correct
Whether the ceiling elevation conflicts with beams, pipes, ducts, or equipment
Whether control lines continue accurately between adjoining rooms and corridors
Whether corners, junctions, and changes in direction are properly aligned
Measuring equipment should be checked before use. In large spaces or projects with strict level requirements, laser levels can improve the speed and accuracy of setting-out work.
Light steel keel installation generally requires measuring, cutting, drilling, and fastening tools.
Typical tools include:
Tape measures
Spirit levels
Laser levels
Chalk lines
Metal snips
Suitable cutting equipment
Electric drills
Screwdrivers or powered screw-fastening tools
Cut metal framing can have sharp edges, so workers should wear suitable gloves and eye protection.
When drilling overhead or working at height, approved working platforms and appropriate personal protective equipment should be used. Workers should follow the safety requirements established for the construction site.
Drilling should not begin until the positions of concealed pipes, cables, and other services have been confirmed. Damaged ladders, temporary supports, and unstable working platforms should not be used for ceiling installation.
For large, complex, or high-quality projects, installing a sample wall or ceiling section before full construction can be useful.
A sample section allows the project team to confirm the framing arrangement, connection methods, opening reinforcements, facing-board installation, and coordination with building services.
Before full installation begins, a technical briefing should also be provided to the workers. It should clearly explain:
Drawing requirements
Material specifications
Installation sequence
Critical quality-control points
Safety precautions
Approved construction details
If design details are changed, the relevant drawings and installation instructions should be updated promptly. This helps prevent different installation teams from following inconsistent methods.
Preparations for light steel keel installation include reviewing drawings, inspecting substrates, checking materials, coordinating MEP services, setting out control lines, preparing tools, and confirming safety conditions.
Ignoring any of these stages may affect the alignment, stability, and finished quality of the partition or suspended ceiling system.
Installation should be based on approved project drawings, system technical documentation, and applicable local building regulations. Suitable framing components and accessories should be selected according to partition height, ceiling structure, facing-board type, environmental conditions, and design loads.
Thorough preparation reduces unnecessary rework and provides a stable, reliable framework for the subsequent installation of gypsum boards, mineral fiber ceiling tiles, and other interior finishing materials.
