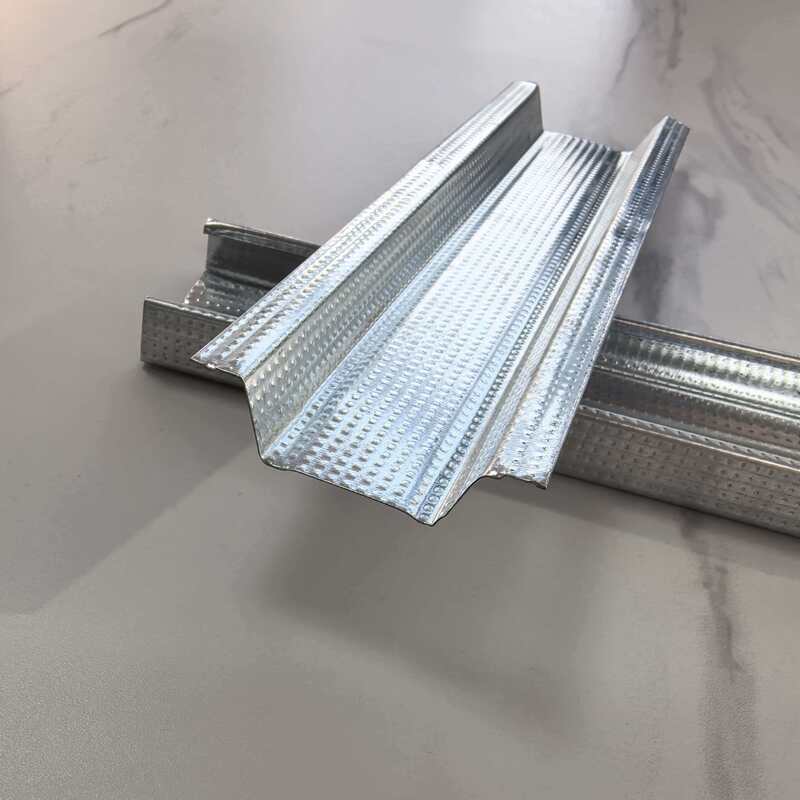

High Strength Ceiling Light Steel Keel Manufacturer for Commercial Ceiling Systems

Ceiling Light Steel Keel is the supporting framework used in suspended ceiling systems. It works together with gypsum ceiling tiles, mineral wool ceiling tiles, PVC ceiling panels, aluminum ceiling tiles, and other decorative ceiling materials.

With its lightweight structure, high load-bearing capacity, corrosion resistance, and easy installation, it has become one of the most widely used ceiling suspension systems in commercial buildings, offices, hotels, hospitals, schools, shopping malls, airports, and residential projects.

Quantity:
Color:	Galvanized White Black Customized
Availability:





Inquire Add to Basket

Model:
HF-001
Brand:
haofa

PRODUCT PARAMETERS

Material	High-Quality Galvanized Steel
Surface Treatment	Hot-Dip Galvanized / Painted
Thickness	0.30mm – 1.20mm
Width	24mm / 32mm / 38mm / Customized
Length	3000mm / 3600mm / 3660mm / Customized
Zinc Coating	60g/m² – 275g/m²
Tensile Strength	≥ 350 MPa
Installation Type	Suspended Ceiling System
Application	Commercial Buildings, Offices, Hotels, Hospitals, Schools, Shopping Malls, Airports, Residential Buildings
OEM & ODM	Available

PRODUCT ADVANTAGES

High Strength & Excellent Stability：Manufactured from premium galvanized steel, providing superior load-bearing performance and structural stability for large ceiling installations

Corrosion Resistant & Long Service Life：Hot-dip galvanized coating effectively protects against rust and corrosion, extending the service life even in humid environments.

Easy & Fast Installation：Designed for quick assembly and precise alignment, reducing labor costs and improving installation efficiency.

Lightweight & Cost-Effective：The lightweight structure minimizes transportation and installation costs while maintaining excellent mechanical strength.

Wide Compatibility：Compatible with Gypsum Ceiling Tiles, Mineral Fiber Ceiling Tiles, PVC Ceiling Panels, Aluminum Ceiling Tiles, and other ceiling systems.

Flexible Customization：Available in various sizes, thicknesses, zinc coatings, and specifications to meet different project requirements worldwide.

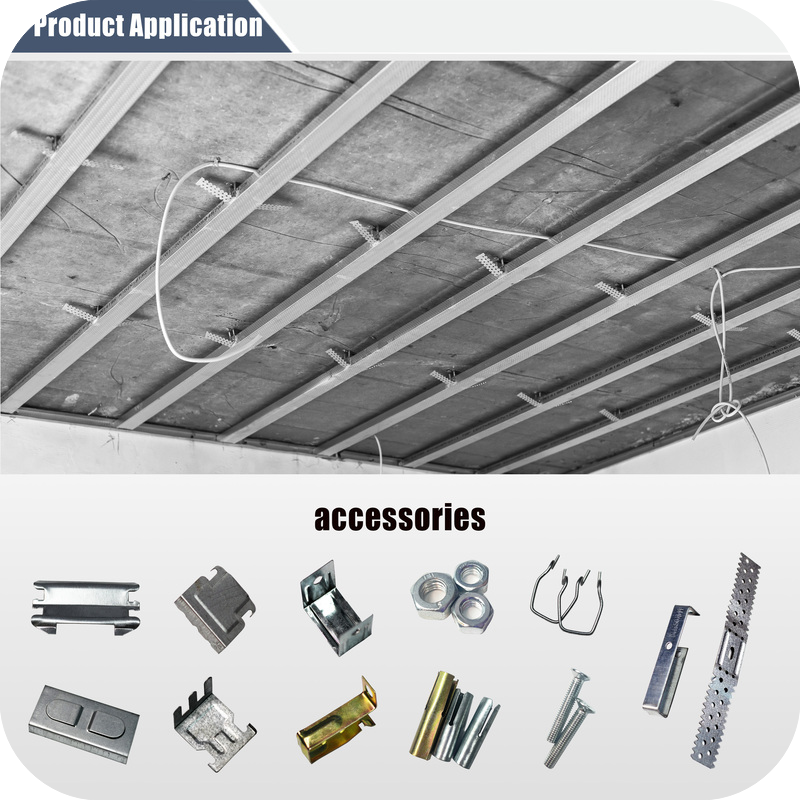

CEILING LIGHT STEEL KEEL APPLICATION EFFECT

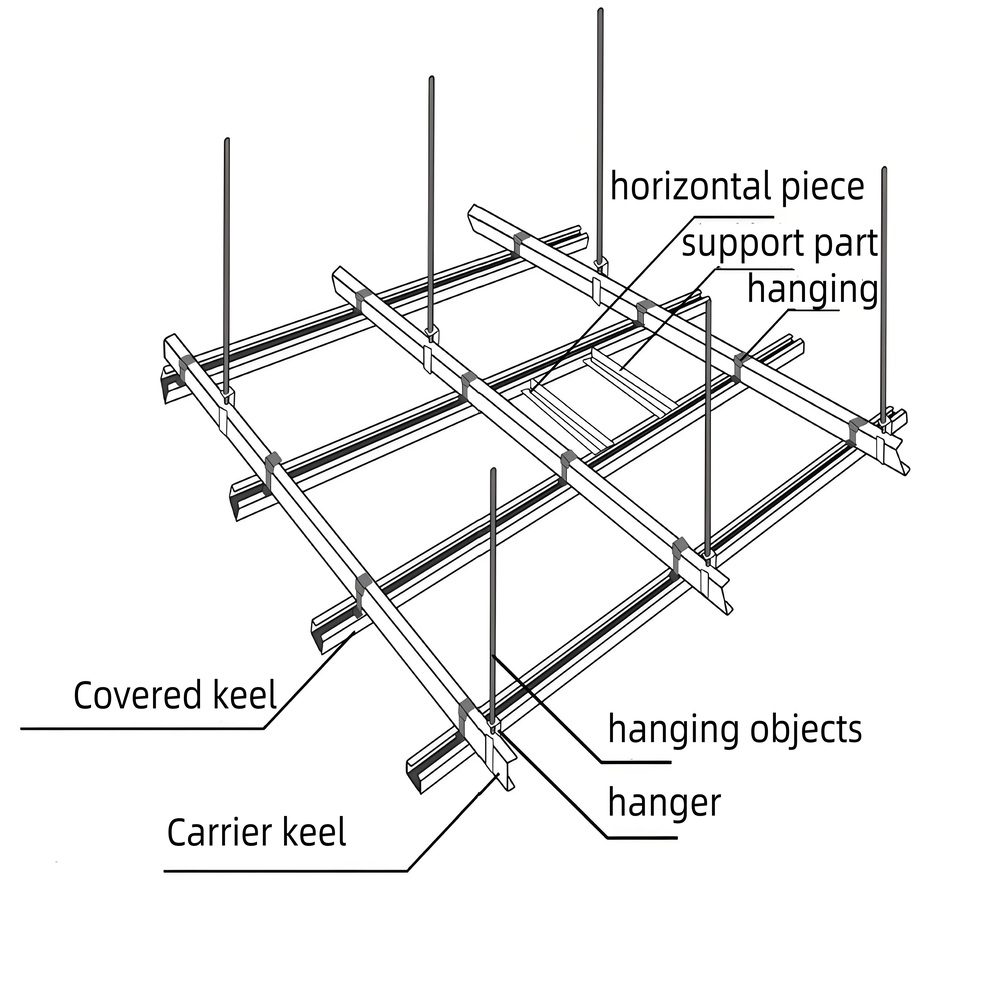

3D Line Drawing of Full Ceiling Keel Frame Structure

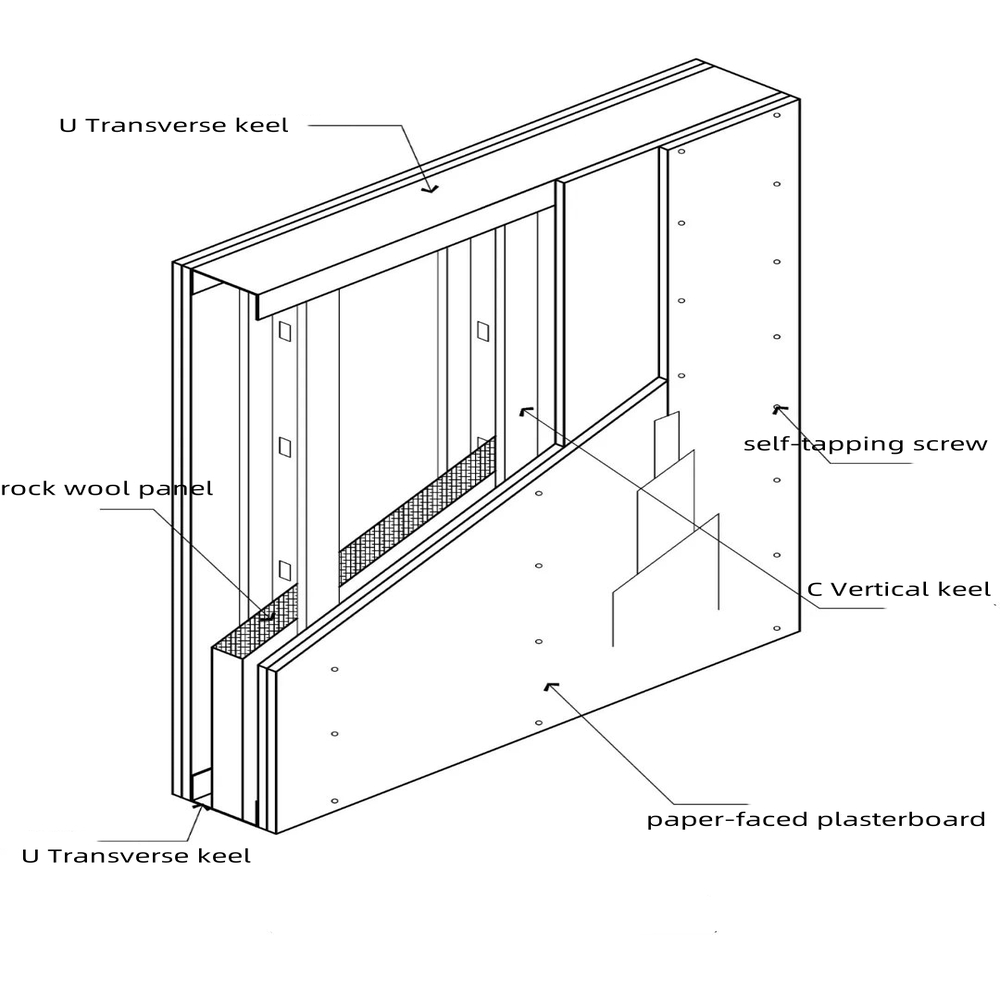

Section Installation Drawing of Partition Wall Keel

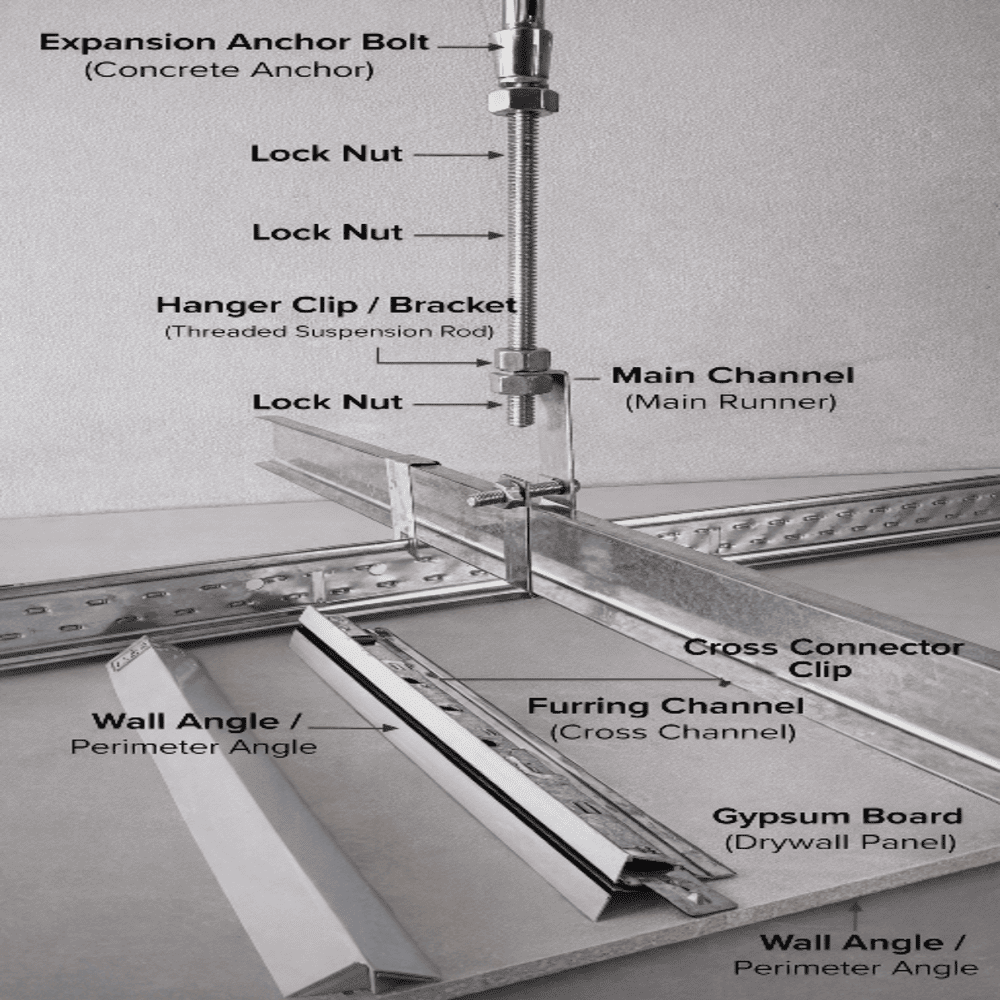

Labeled Exploded Diagram of Ceiling Keel System

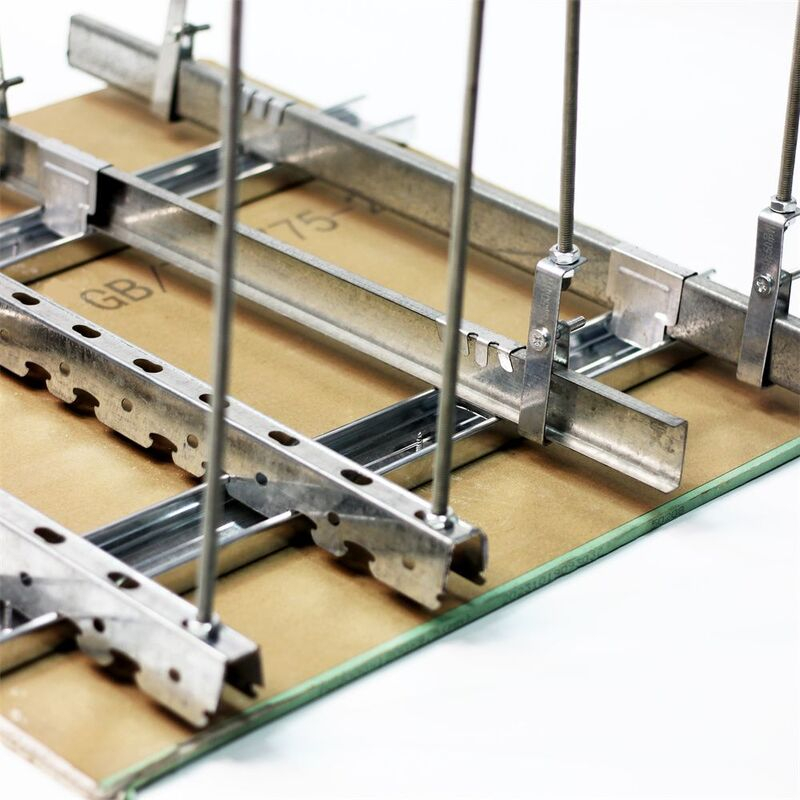

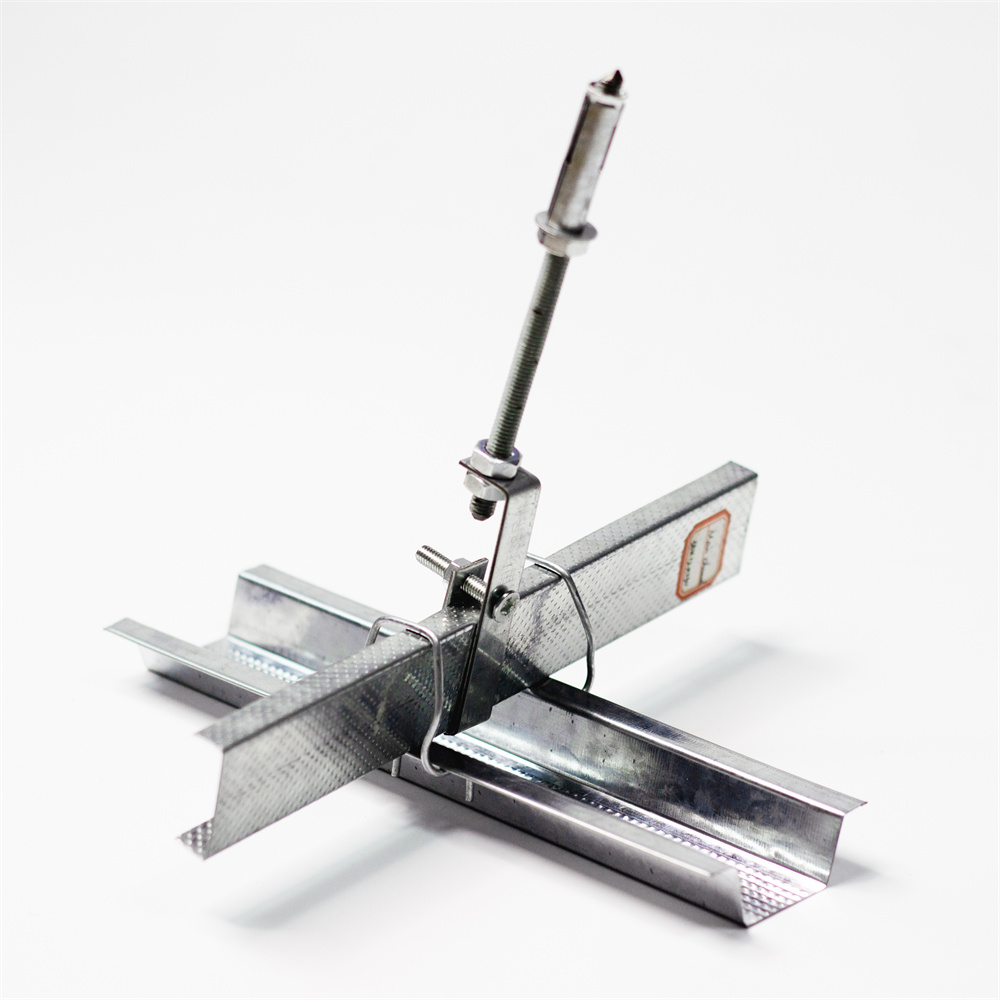

Complete Assembled Galvanized Ceiling Keel Components

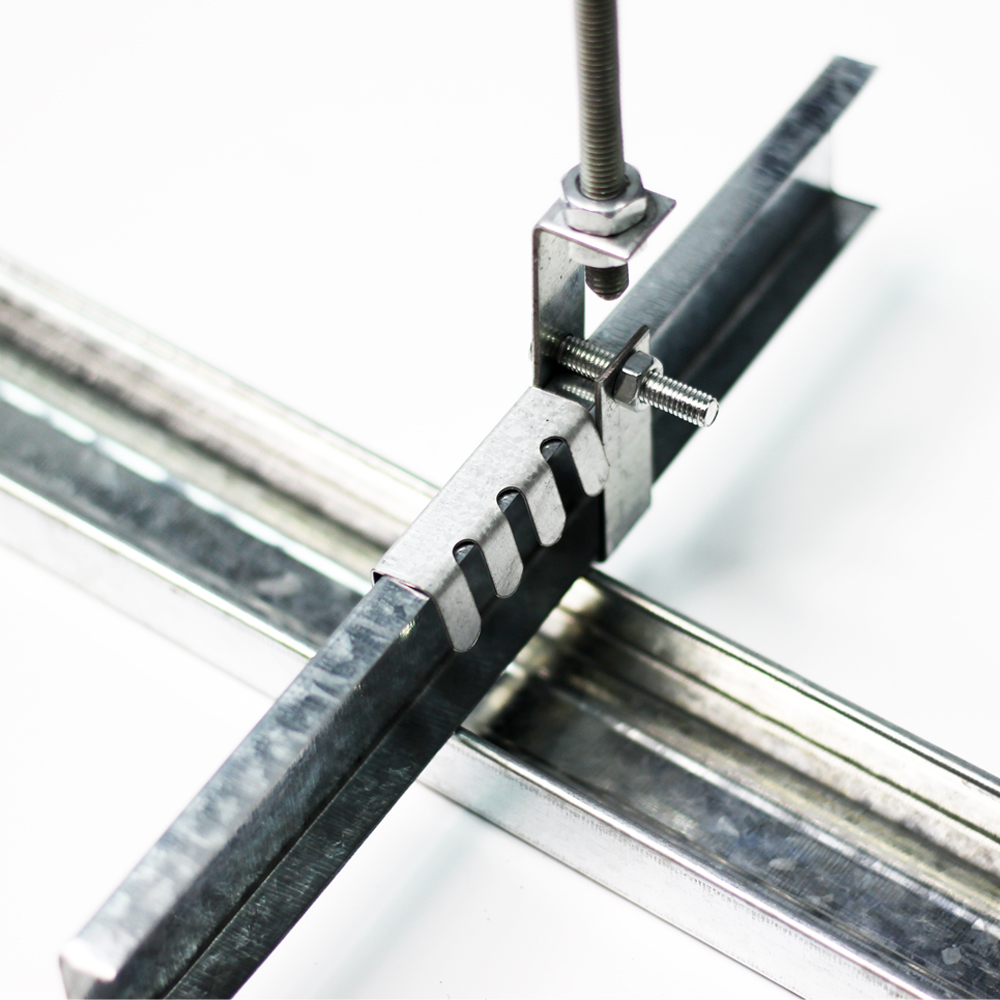

Close-up of Main & Cross Keel Connection Clip

Labeled Exploded Diagram of Ceiling Keel System

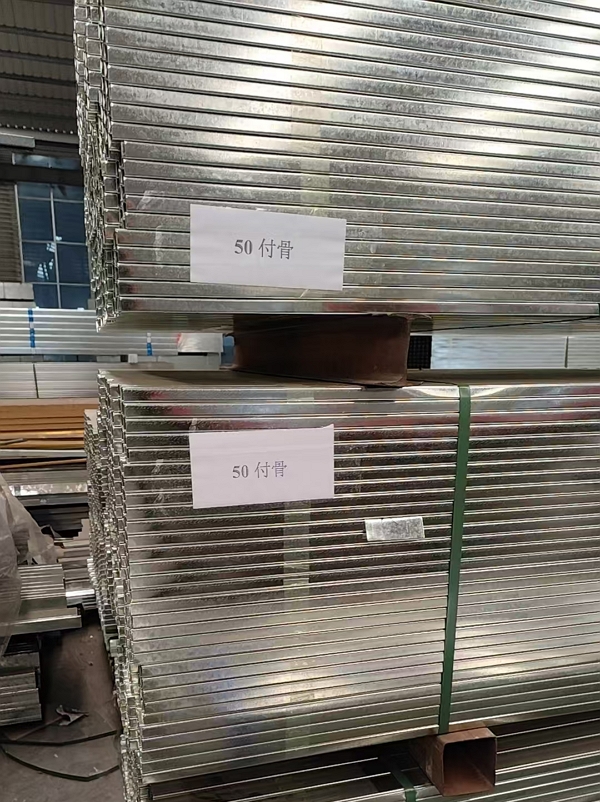

PACKAGING AND TRANSPORTATION

All products are carefully packed using protective materials to ensure safety during handling, storage, and long-distance transportation. Items are securely wrapped with moisture-proof and impact-resistant materials to reduce the risk of damage.

For export shipments, goods are stacked on reinforced pallets and properly secured to ensure stability during container loading. Protective measures such as edge protection, strapping, and wrapping are applied to prevent shifting and breakage during transit.

We support a variety of logistics solutions, including sea freight, land transportation, and multimodal shipping, to ensure efficient and reliable global delivery. Each shipment is inspected and properly labeled before dispatch to ensure accurate and safe delivery.

ABOUT HAOFA

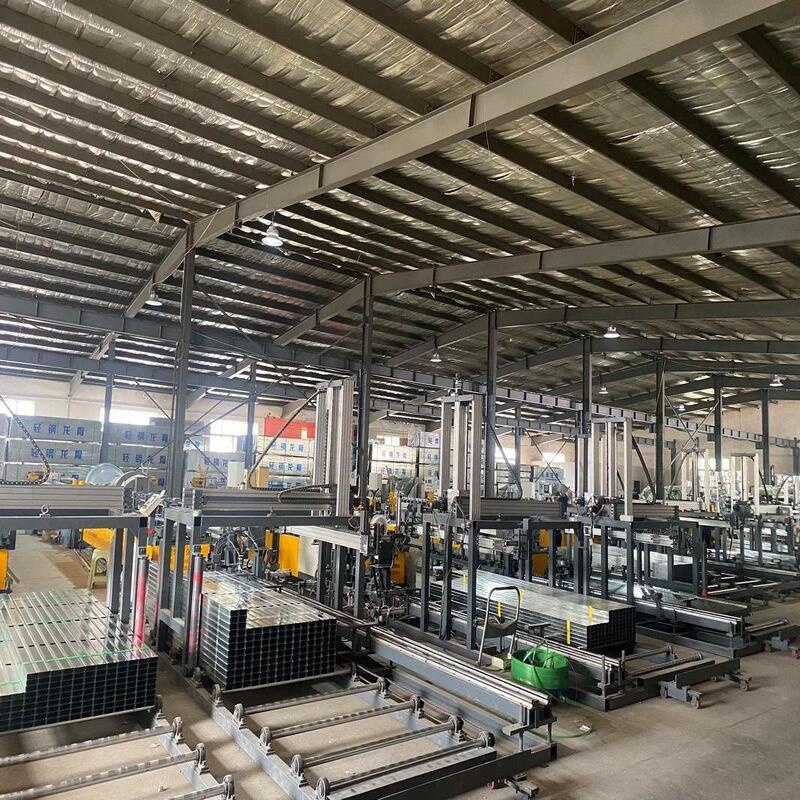

Haofa International is a professional gypsum board manufacturer equipped with advanced automated production lines, ensuring stable quality and efficient output. With a strong global presence, our products are exported to more than 80 countries across Southeast Asia, the Middle East, Africa, South America, and Europe. We provide comprehensive services including technical installation guidance, CE and ASTM certified products, and customized sizes and thickness options to meet diverse project requirements. In addition, we offer a 12-month warranty along with permanent after-sales support, ensuring long-term reliability and customer satisfaction. Haofa International is your trusted partner for high-quality gypsum board solutions worldwide.

ABOUT US

SERVICE

OUR PRODUCT SYSTEM

FAQs

What is your MOQ and how is pricing calculated? Do you offer samples?

Our standard MOQ is 500 meters per order, with tiered pricing — the larger the quantity, the better the unit price. Pricing depends primarily on:
* Thickness (thicker gauge = higher cost)
* Zinc coating weight (higher g/m² = higher cost)
* Custom dimensions (non-standard sizes may have a small setup fee)
Samples are available at a nominal fee. We accept L/C, T/T, and Alibaba Trade Assurance. Contact us with your quantity and specs for a detailed quotation.
What are the differences between ceiling keel and partition keel? How do I choose the right type?

Ceiling keel (suspended ceiling system) typically uses Main Runner (carrying channel) and Cross Runner / Furring Channel — often T-bar or C-shape profiles that form a grid to support ceiling panels like mineral wool boards or gypsum boards. Partition keel (drywall framing system) uses Stud (vertical/C-shape) and Track (horizontal/U-shape) — these frame the wall cavity and are fixed to floor and ceiling tracks. Key tip: If you are building a wall → order Stud + Track. If you are building a ceiling → order Main Runner + Cross Runner/Furring Channel. If unsure, tell us your project type and we will recommend the correct system.
What thickness and standard sizes are available? Can you customize dimensions?

For Partition Keel (Drywall Stud & Track): We supply thickness from 0.30mm to 1.20mm, with common widths of 50mm / 75mm / 100mm and standard lengths of 2.6m / 2.8m / 3.0m / 4.0m.
For Ceiling Keel (Suspended Ceiling System): Standard widths are 38mm / 50mm / 60mm, with a standard length of 2,900mm. The most popular type is the Omega Furring Channel (Ω-shaped profile), with dimensions of 35mm × 68mm × 22mm — widely used across Europe, Middle East, Africa, and Southeast Asia for its excellent rigidity and easy clip-in installation with gypsum/mineral wool ceiling boards.
Customization is fully supported across all types:
Custom length (cut to your project requirement — any length available)
Custom width/height dimensions

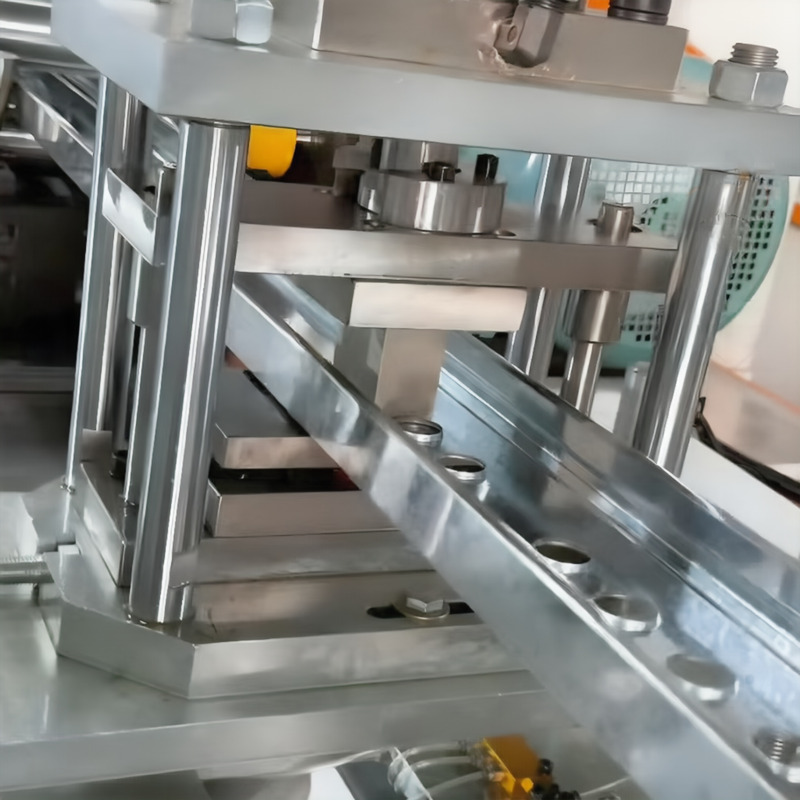

Custom punching or knurling patterns for better screw grip
Simply send us your drawings or dimensional requirements — we produce to your exact specs
